In the industrial spraying sector, precision, efficiency, and reliability have always been the core considerations for equipment selection. Shenzhen Teda Robotics Co., Ltd. has developed the AccuFlo1KP flow control system to the highest quality standards, dedicated to providing high-precision, low-consumption, and user-friendly flow control solutions for automated spraying across multiple scenarios. After eight years of meticulous R&D and three iterative upgrades, it rivals top international products, ensuring that its design, software, and processes remain at the industry forefront.
01 Product Overview
The AccuFlo1KP is a high-precision flow metering device specifically designed for automated spraying applications. It features precise flow control, integrated cleaning and color-changing functions, and reserved expansion interfaces for spraying process control. It is suitable for various single-component, solvent-based, and water-based coatings, as well as fluids such as polyurethane and epoxy resin.
Technical Features:
Minimum Flow Rate: 1 mL/min
Flow Control Accuracy: ±1%
High-Precision Ceramic Cylinder + DLC-Coated Piston Rod
FFKM Seals with Strong Chemical Resistance
Supports Multiple Pump Capacities: 17 CC / 35 CC / 70 CC
02 Six Major Technical Advantages
High Precision / Low-Pulsation Flow Control
Utilizes an absolute servo motor with flow output increments as fine as 0.1 mL. Combined with high-speed solenoid valves and fluid switching valves, it achieves low-pulsation operation.
Rapid Cleaning with Low Solvent Consumption

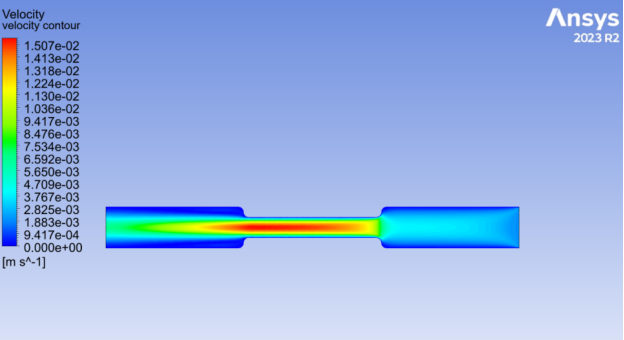

CFD-optimized flow channel design ensures a smooth, dead-zone-free interior wall for thorough cleaning and significantly reduced solvent usage.
Supports Multiple Communication Protocols
Equipped with discrete I/O interfaces and supports protocols such as Modbus RTU and Profinet, offering strong compatibility and ease of system integration.
User-Friendly Operation with High Reliability
Features proprietary control software with an intuitive interface. Supports real-time monitoring of motor position, flow rate, pressure, and other parameters. Allows one-click switching between local and remote modes.
Long Service Life with Low Maintenance
Constructed with a ceramic cylinder, DLC-coated piston rod, and FFKM seals. Designed for over 300,000 cycles of reciprocating motion, substantially reducing maintenance costs.
Multiple Cylinder Capacity Options
Available in three specifications: 17 CC, 35 CC, and 70 CC, delivering maximum flow rates of 170 mL/min, 350 mL/min, and 700 mL/min, respectively.

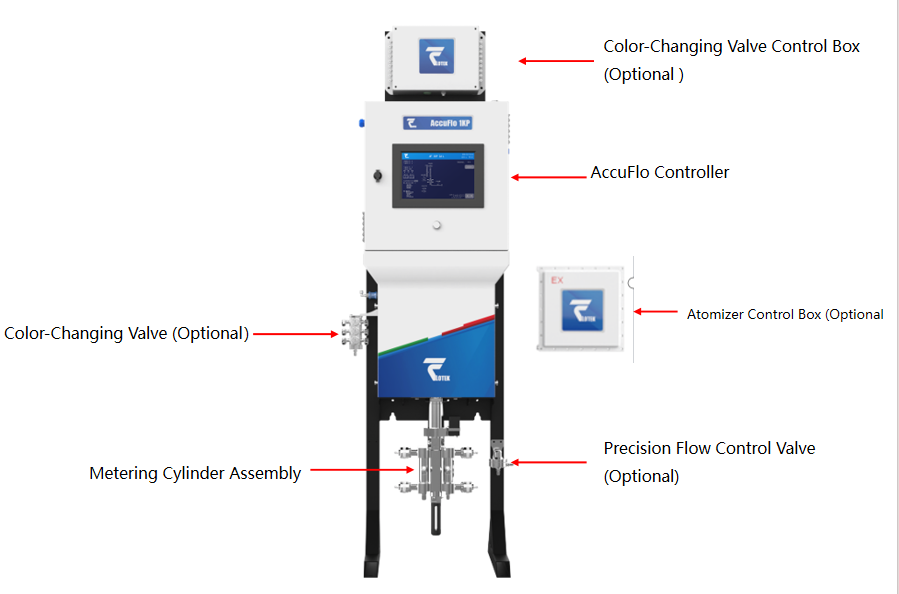

03 Core Structure & Optional Modules
Metering Cylinder Structure
Absolute Servo Motor + Precision Electric Cylinder
PEEK/UHMW Piston Assembly + FFKM Throat Seal
Imported High-Precision Pressure Sensor

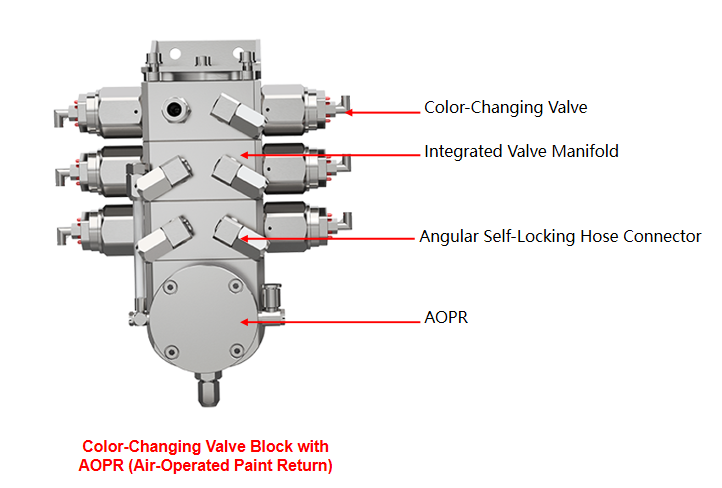

Novel Color-Changing Valve (Optional)
Offers three types: Universal, Diaphragm Retraction, and Pin-Type valves. Supports quick disassembly/assembly and boasts a lifespan of 500,000 to 1,000,000 cycles. Suitable for coatings with varying viscosities and properties.
Controller & Software
Weinview 10-inch Industrial Touch Screen + Siemens 1200 PLC
Inovance Multi-Turn Absolute Closed-Loop Servo Motor
Supports Profinet Bus Communication
Real-time monitoring, parameter setting, fault diagnosis, and flow calibration capabilities
04 Industry-Leading Bubble Suppression Technology
The AccuFlo1KP utilizes a synchronization mechanism between high-speed solenoid valves and fluid switching valves, combined with a CFD-optimized flow channel design, to effectively suppress pressure fluctuations and bubble formation. This ensures precise metering performance even with high-viscosity materials or at low flow rates.
05 Technical Parameter Summary
Maximum Fluid Pressure: 300 psi (2.1 MPa)
Flow Range: 1–700 mL/min
Viscosity Range: 20–5000 cps
Repeatability: ±1%
Noise Level: <75 dB(A)
Power Supply: AC 220V, 50–60 Hz
Operating Temperature: 5–50°C
06 Selection Guide
Users can select different cylinder capacities based on flow requirements:
17CC Cylinder: Maximum flow rate 170 mL/min
35CC Cylinder: Maximum flow rate 350 mL/min
70CC Cylinder: Maximum flow rate 700 mL/min
Optional accessories include:
Color-changing valve blocks (1–16 colors)
Atomizer control boxes
