In dual-component coating applications,accurate ratio control and stable mixing are core to ensuring coating quality and production efficiency.
Shenzhen Teda Robotics Co., Ltd. independently developed the CorMix Dual-Component Precision Electronic Proportioning System. After eight years of meticulous R&D and multiple iterations, it has achieved international-leading performance and outstanding cost-effectiveness, gaining widespread adoption and market validation in the spraying industry.
High Precision: Ratio accuracy up to ±1%
Multiple Models: Adaptable to different flow rates and process requirements
Flow-Through Channel Design: Fast response with no residue retention
02 Technical Advantages
High Stability & Reliability: Proprietary software architecture ensures rapid response and user-friendly operation.
Low Maintenance Costs: Economical upkeep with no moving parts other than the proportioning valves.
Diverse Communication Protocols: Supports discrete I/O and customizable interfaces for strong compatibility.
Simple & Easy to Use: Eliminates the need for secondary pressurization; flow output automatically adapts to atomizer requirements.
Excellent Mixing Performance: CFD-optimized flow channels and a multi-strategy mixing approach suitable for both low and high-viscosity materials.
High Cost-Effectiveness: Wide compatibility for low/high-pressure applications and a high localization rate of core components.

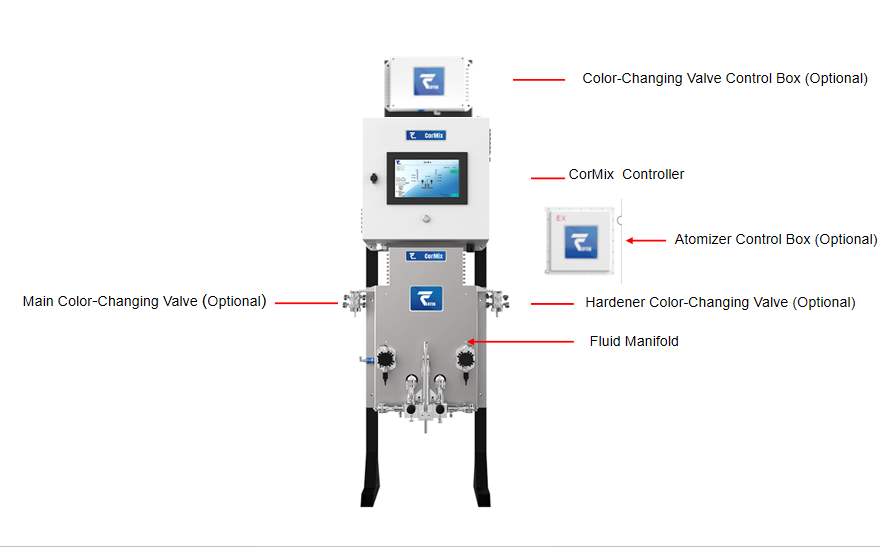

Controller:
Siemens PLC + Inovance Multi-Turn Absolute Closed-Loop Servo System

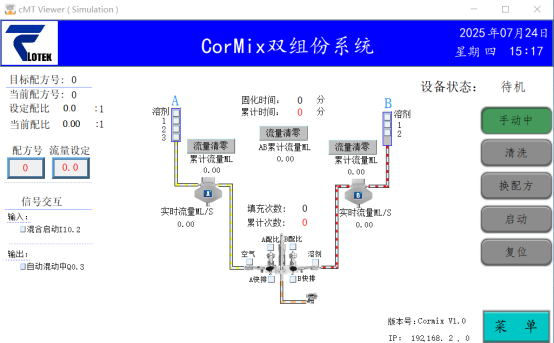

Weinview 10-inch Industrial Touch Screen
PROFINET Bus, High-Speed Solenoid Valves, High-Precision Pressure Sensors
Supports Modbus RTU and PROFINET (optional)
Color-Changing Valves:
Multiple options: Universal, Diaphragm, and Pin-Type Valves
Maximum service life of up to 1 million cycles (depending on coating characteristics)
Rapid cleaning, supports disassembly and maintenance

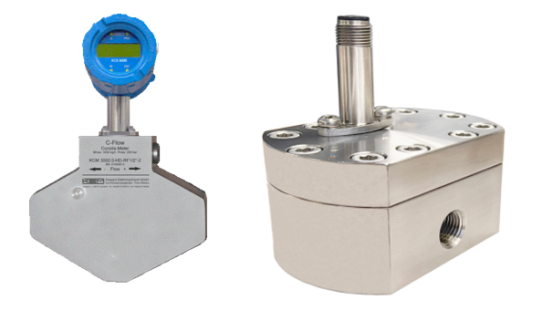

Flow Meter Options:
Mass Flow Meter: High precision, measures mass/density/temperature, supports various materials (higher cost)
Gear Flow Meter: Compact and lightweight, 5–3000 cc/min, wide adaptability, cost-effective
Wider Ratio Range (50:1): Offers greater flexibility in mixing proportions.
Higher Ratio Accuracy (±1%): Ensures precise and consistent material combination.
Lower Maintenance Costs: Simple and reliable structure reduces upkeep.
Compatibility with Low/High-Pressure Systems: Adaptable to diverse application needs.
Excellent Mixing Efficiency: Effective performance across various working conditions.
Ratio Range: Up to 50:1
Ratio Accuracy: ±1%
Flow Range: Covers low to high flow applications depending on flow meter type.
Compatible Coatings: Solvent-based, water-based, moisture-sensitive, and light-sensitive two-component coatings.
System Configuration: Supports various color-changing solutions and flow meter combinations.
The CorMix Dual-Component Precision Electronic Proportioning System has gained widespread industry recognition for its high accuracy, low maintenance, and strong compatibility. Whether you are an end-user or a channel partner,Teda Robotics provides a cost-effective and stable proportioning solution to help enterprises achieve green manufacturing and high-quality production.
