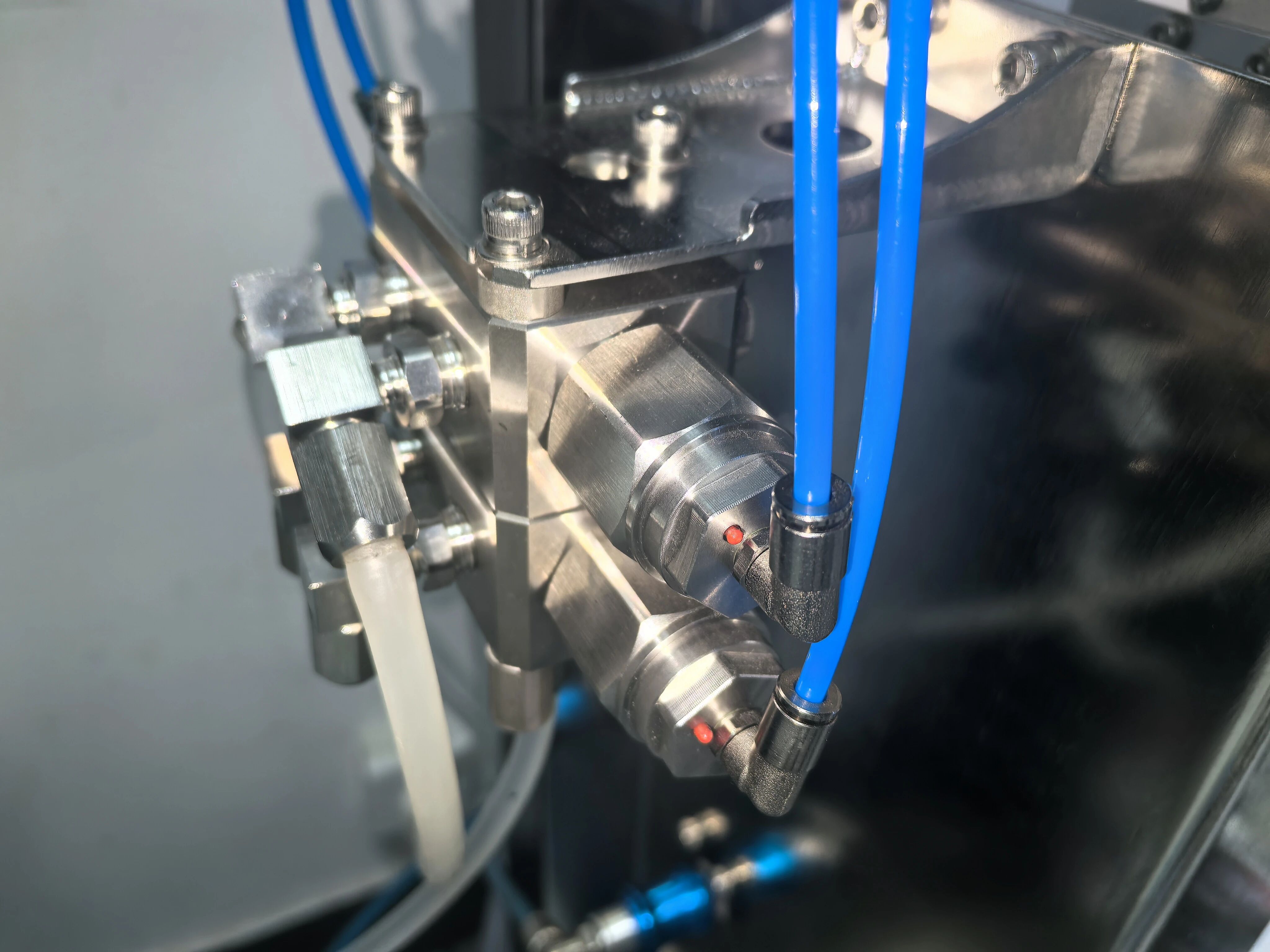

On automated spraying lines, color change speed, cleaning efficiency, and stability are critical factors directly determining production costs and coating quality.Teda Robotics's CV300 Stainless Steel Low-Pressure Color Change Valve is built to the highest quality standards, meeting the modern coating industry's extreme demands for efficiency, reliability, and low material loss.

01 Product Advantages

Rapid Cleaning, Higher Efficiency

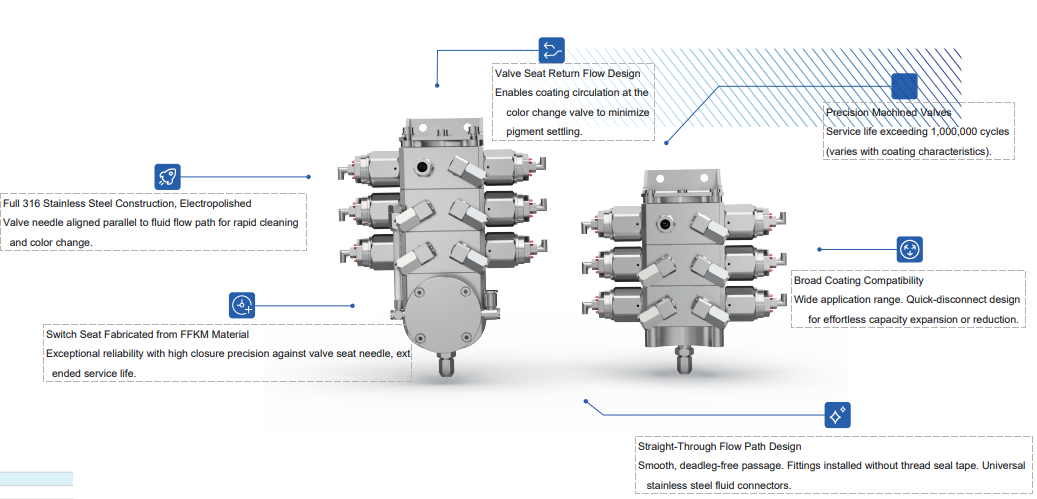

l Unique valve seat return flow design enables paint circulation at the valve, reducing sedimentation.

l Valve needle aligned parallel to the fluid channel facilitates fast cleaning and color changes.

l Cleaning process completed in seconds, paint loss measured in milliliters, significantly reducing costs.

Modular Design, Flexible Expansion

l Configurable to meet production needs: 1 color/1 flush, 3 color/1 flush, 5 color/1 flush, 9 color/1 flush, supporting up to 15 colors.

l Quick-disconnect design allows easy capacity expansion or reduction, adapting flexibly to different production line processes.

Compact Structure, Flexible Installation

l Full 316 stainless steel construction, electropolished, compact design.

l Can be integrated on spraying robot forearm or color change island, multiple installation options accommodate complex layouts.

Highest Quality Standards, Long Service Life

l Precision-machined valve with over 1,000,000 cycle durability (depending on paint characteristics).

l Switch seats made from FFKM material for high reliability and excellent sealing performance.

l Smooth, deadleg-free flow path design prevents residue, ensuring pure paint output.

02 Technical Specifications (Excerpt)

• Max. Paint Pressure:300 psi (21 bar, 2.1 MPa)
• Max. Air Pressure:100 psi (7 bar, 0.7 MPa)
• Operating Temperature: 5 – 50°C
• Compatible Fluids:Primer, Topcoat, Clear Coat, Solvent-Based & Water-Based Paints, Polyurethane, Epoxy, etc.
• Wetted Parts:316 Stainless Steel, FFKM, Ultra-High Molecular Weight Polyethylene (UHMWPE)

03 Application Fields

• Automotive OEM and Component Painting
• Surface Coating for Appliances and Metal Parts
• Industrial Coatings and Wood Finishing
• Multi-Station, High-Mix Fully Automated Spraying Lines

04 Quality-Driven Coating Innovation

Amid rising material costs and escalating demands for superior finishing, Teda  Robotics's CV300 Stainless Steel Low-Pressure Color Change Valve delivers premium performance to help enterprises:

✅ Accelerate color change efficiency

✅ Reduce paint waste

✅ Ensure coating purity and consistency

Empowering every spray operation with faster, more stable, and purer output.
