In modern coating production, enterprises often face three major challenges:

Difficulty in Ensuring Spraying Quality

• Uneven coating thickness and frequent surface defects
• Low first-pass yield and high rework rates

Low Color-Change Efficiency and High Material Waste
• Frequent color changes required for multi-variety, small-batch processes
• High solvent consumption and prolonged production line downtime

Insufficient Equipment Stability
• Complex setup and heavy maintenance burden

This translates to decreased efficiency, increased costs, and limited quality.

Precisely engineered to tackle these challenges, Taida Robot introduces the AccuFlo 1KG / 2KG Gear Pump Metering and Proportioning System. By integrating high-precision gear pumps, intelligent process control, and modular design, it enables a spraying process that is truly:

✅ More Precise — Stable ratios ensure consistent coating quality.
✅ More Efficient — Rapid color changes minimize downtime.
✅ More Reliable — Lightweight, modular design simplifies maintenance.

01 Product Advantages

High-Precision Metering for Stable Spraying

Gear pumps with ADLC coating for high hardness and extended service life

±2% accuracy ensures uniform coating thickness

Fast response for smoother surface finishes on appearance parts

Flexible Multi-Color Switching

Supports up to 30 colors

Highly integrated color-change valves + gear pumps enable clean, seamless transitions

Diaphragm-type hardener valves prevent cross-contamination with longer service life

Explosion-Proof Design for Reliable Operation

Optional explosion-proof servos, motors, and pressure sensors

Full system explosion-proof certification meets spray booth safety standards

Compact and Easy to Integrate

Modular design with small footprint and lightweight construction

Direct mounting on spray robot arms for easier line changes or expansions

Intelligent Software for Precision Control

Proprietary spraying software — mature, stable, and user-friendly

Rapid process parameter adjustments with responsive performance

Supports atomizer process control for unified management

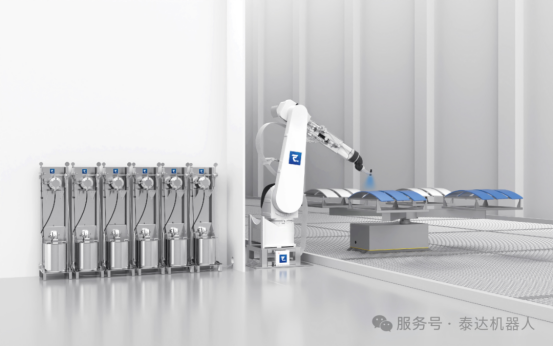

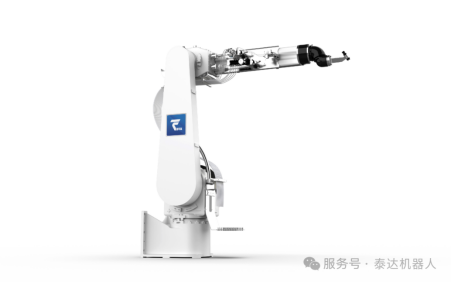

Arm Mounting Diagram

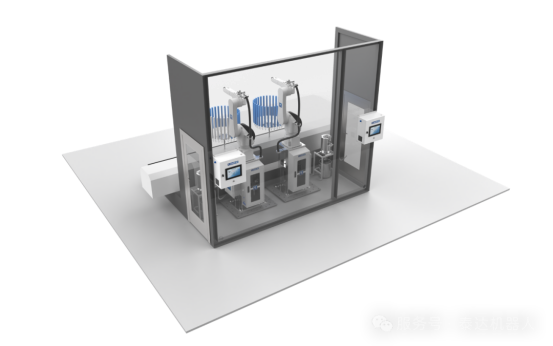

Integrated Cabinet Mounting Diagram

02 TECHNICAL DATA TABLE

Designation and Value
Max Material Pressure	300 psi（21 bar，2.1 MPa）
Max Air Pressure	145psi（10 bar，1.0 MPa）
Proportion Range	1:1 to 30:1，±2 %
Flow Range	1KG:10-1000 ml/min:1  2KG:20-1200 ml/min
Repeat Accuracy	±2%
Viscosity Range	20 - 5000 cps
Noise	＜75 db（A）
Operating Temperature	5 - 50°C（41 - 122° F）
Apply Materials	Single or plural-component, solvent-based and water-based coatings, polyurethane, epoxy, acid-catalyzed varnishes, etc.
Wetted Parts	Stainless Steel, Composite Materials,PFPE,PTFE

03 Application

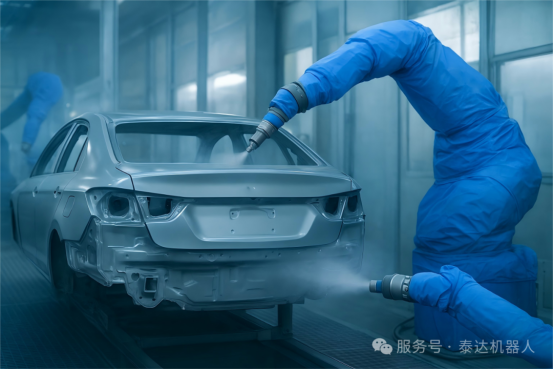

Automotive Exterior Parts Spraying–Precision ratio control ensures stable, high-quality finishes on appearance components.

Home Appliance & Metal Casing Coating–Delivers consistent coating thickness and significantly reduces rework.

Industrial & Wood Coatings–Highly compatible with a wide range of coating materials.

Multi-Component Complex Coating–Efficient color changes for complex applications, minimizing material waste.

04 Conclusion

The AccuFlo 1KG/2KG is more than just a proportioning device – it elevates spray production to new levels of precision, efficiency, and stability.

For Procurement: It helps you reduce material and operational expenditures.

For Engineers: It simplifies setup and operation, ensuring peace of mind.

For the Enterprise: It enhances production line efficiency and first-pass yield.

Amid the rapid rise of high-end domestic manufacturing, Teda Robotics holds a firm belief: replacing international brands isn't about imitation – it's about surpassing them with the highest quality standards.

Explore tailored solutions for your application:
Shenzhen Teda Robotics Co., Ltd.
Hotline: +86-755-86371531
