Features
•Up to 30-color integration with compact color change valves and gear pump assemblies
•Multiple configurations available, featuring titanium-coated gear pumps for durability
•Long-life diaphragm-type color change valve on hardener side
• High-precision flow control with ±2% accuracy
•Fast response time and rapid color switching capability
 |
 |
 |

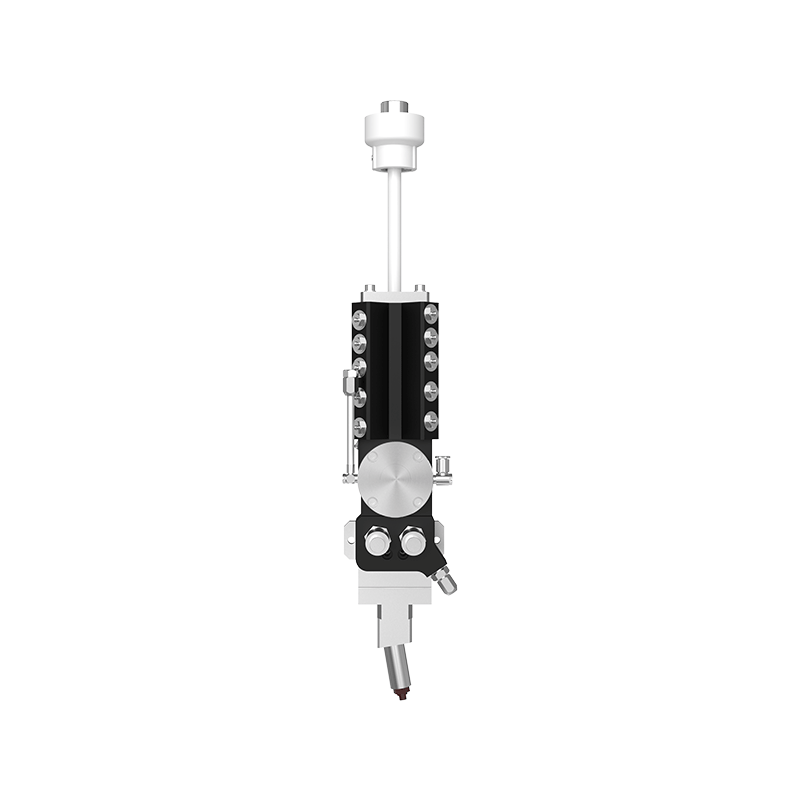

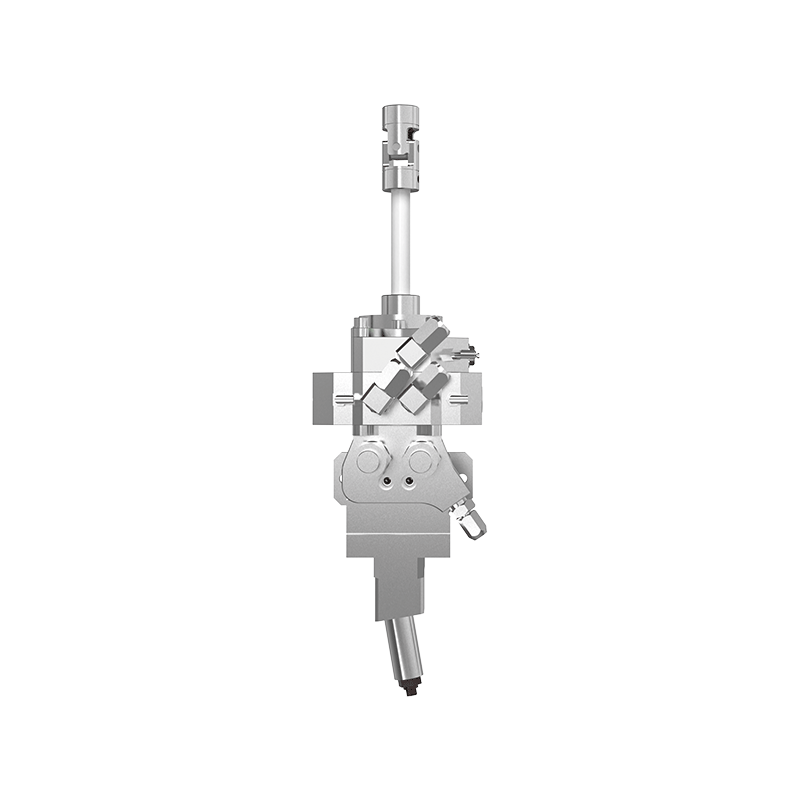

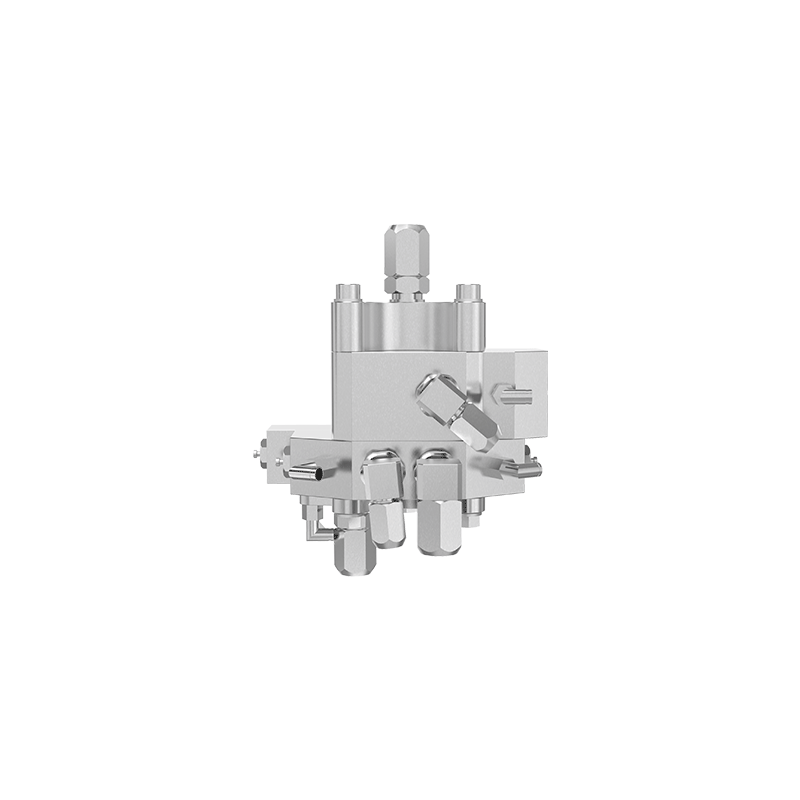

| Resin side | Hardener side | Mixer |
Advantages
• Proprietary intelligent spray software developed over years of refinement offers smart, fast, and reliable control
• Explosion-proof design options: built-in motors, external explosion-proof servos, and pressure sensors
• Compact and lightweight color change modules allow easy integration and modular desige,easy for future extending
• Integrated atomizer process control box, including control functions: color change valves, atomizes rand processed
Applications
• Auto Parts
• Furniture & Wood Finishing
• Sanitary Ceramics & Bathroom Products
•3C
•General Industrial: Hardware, Plastics, and More
TECHNICAL DATA TABLE
|
Designation |
Value |
|
MaxMaterialPressure |
300 psi (21 bar / 2.1 MPa) |
|
Max Air Pressure |
145 psi (10 bar / 1.0 MPa) |
|
Proportion Range |
1:1 to 30:1, ±2% |
|
Flow Range |
1KG: 10–1000 ml/min; 2KG: 20–1200 ml/min ±2% |
|
Viscosity Range |
20–5000 cps |
|
Noise |
<75 dB(A) |
|
Operating Temperature |
5–50°C (41–122°F) |
|
Apply Materials |
Solvent-/water-based coatings, polyurethane, epoxy, varnish |
|
Wetted Parts |
Stainless Steel, Composite Materials, PFPE, PTFE |
