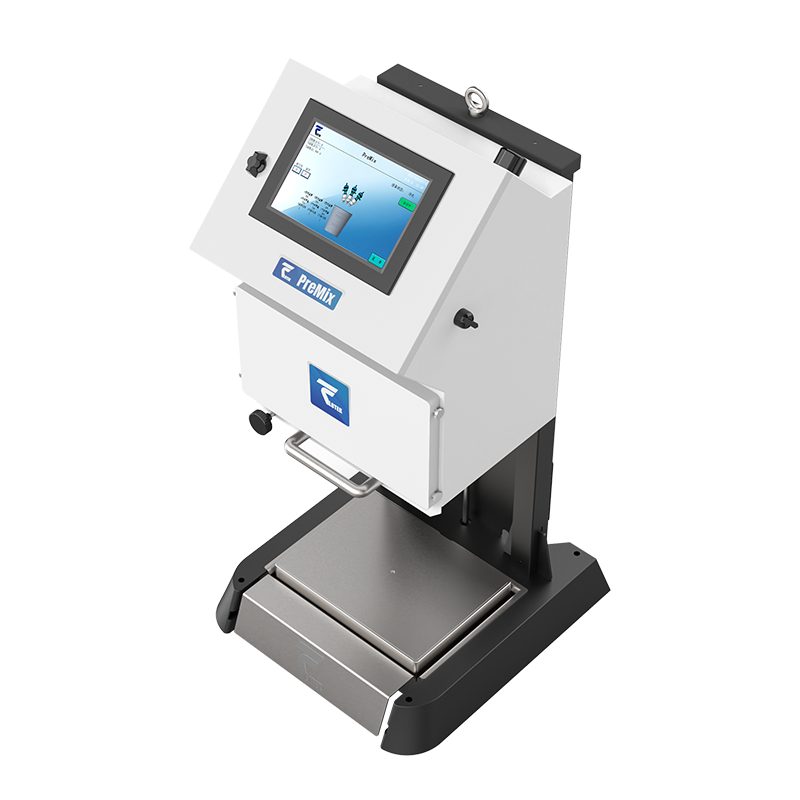

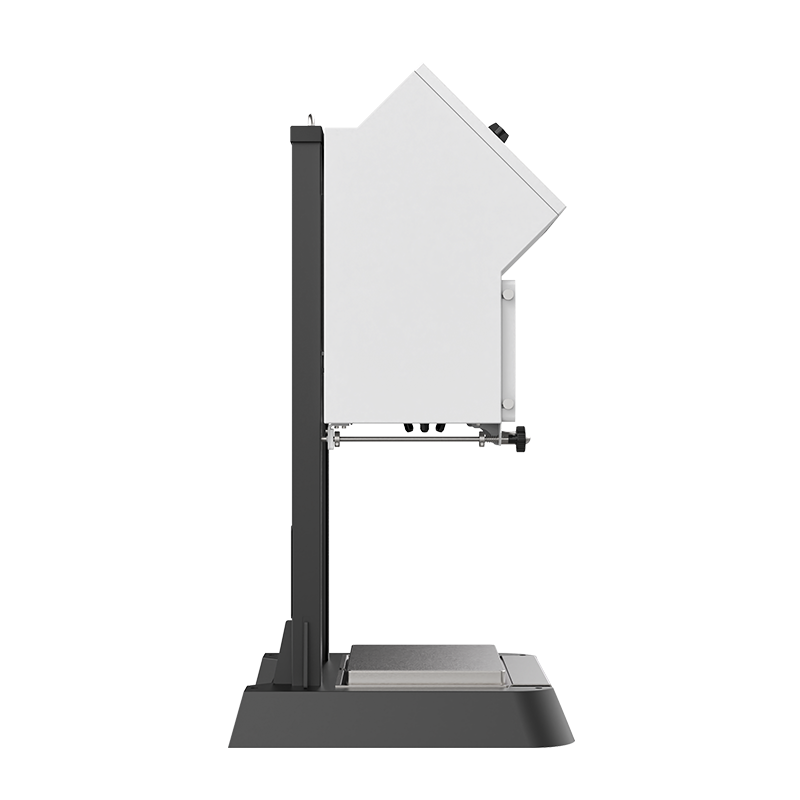

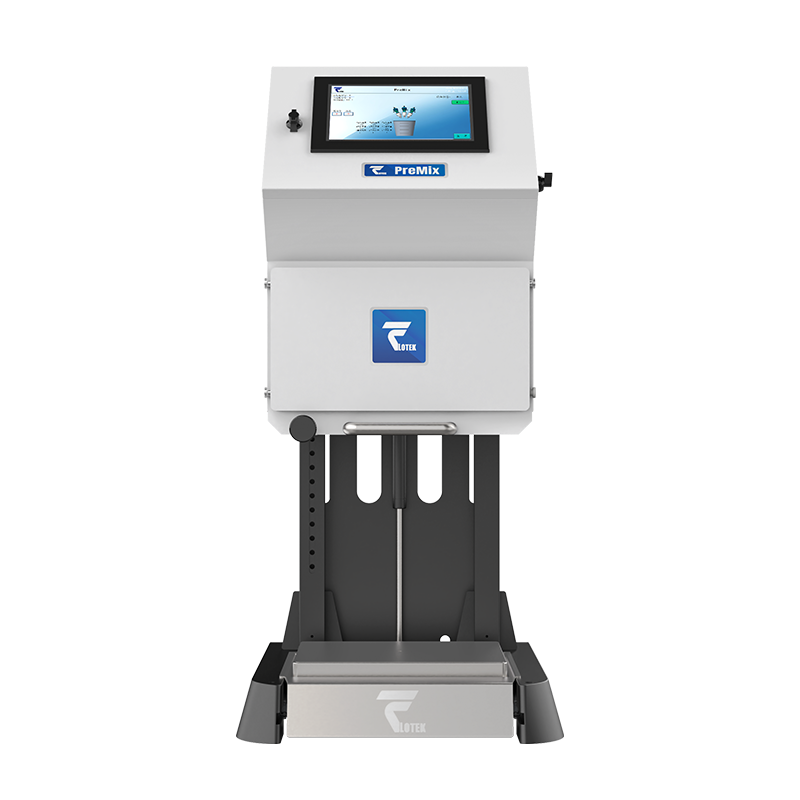

PreMix Automatic Paint Dispenser
PreMix Automatic Paint Dispenser
PreMix Automatic Paint Dispenser
PreMix Automatic Paint Dispenser
OVERVIEW

PreMix Offline Paint Dispenser–purpose-built for paint mixing rooms on spray lines. Features on-demand precise paint proportioning, error-free metering, and data storage, upload, and download capabilities. For paint proportioning control, the system handles formula dispensing for up to six liquids, supports automatic loading or manual addition, and stores 200 formula parameters. The unit meets explosion-proof design standards and Zone 2 explosion protection requirements, suitable for installation in well-ventilated paint mixing rooms and other explosion-proof locations, ensuring safe and efficient operation.

Description

Features

  • Compact & Easy Deployment

      All-in-one unit with small footprint and light weight; simple to install and deploy.

  • Intuitive Operation
      10-inch industrial touchscreen HMI; user-friendly interface for quick system setup and process control.
  • High Stability & Reliability
      Equipped with top-tier domestic/international electrical/pneumatic components; uses stable, high-precision dispensing valves.
  • High Dispensing Accuracy
      Integrates high-precision explosion-proof scales + high-precision dispensing valves; employs intermittent dispensing algorithm for medium proportioning.
  • Explosion-Proof Safety
      Full explosion-proof design (EX-certified components: touchscreen, power switch, scales); sealed explosion-proof enclosure for internal electronics; safe after grounding.
  • Adjustable Height Design
      Supports height adjustment of the paint proportioning system control box based on container size.


Advantages

  • Efficient Deployment
      Compact size reduces space occupation; lightweight design cuts installation and deployment time.
  • Low Operational Threshold
      Intuitive touchscreen interface minimizes training costs; enables fast parameter configuration and process control.
  • Reduced Downtime
      Premium components and stable valves enhance long-term reliability; lowers post-sales maintenance needs.
  • Consistent Coating Quality
      Dual high-precision components + algorithmic dispensing ensure accurate, batch-to-batch paint proportioning.
  • Safe Hazardous Area Use
      Full explosion-proof certification meets safety requirements for paint mixing rooms and other hazardous locations.
  • Enhanced Adaptability
      Adjustable control box height accommodates different container sizes, improving operational flexibility for various batch needs.


Applications

  • Auto Parts
  • Furniture & Wood Finishing
  • Sanitary Ceramics & Bathroom Products
  • 3C
  • General Industrial: Hardware, Plastics, and More


TECHNICAL DATA TABLE

Designation

Value

Maximum Coating Pressure

300 psi (21 bar, 2.1 MPa)

Maximum Air Pressure

100 psi (7 bar, 0.7 MPa)

Paint Dispensing Accuracy

±2%

Flow Range

100-2000 cc/min

Noise Level

< 75 dB (A)

Power Supply

AC 220 V, 50-60 Hz, 4 A

Operating Temperature

5 - 50°C (41 - 122°F)
