OVERVIEW

Low Pressure Regulator designed for air spray systems to ensure precise and reliable fluid pressure control at spray guns, dispensing valves, or atomizing nozzles. Installed on circulation loop output devices or pumps, this regulator reduces main line pressure to maintain required operating pressure at the application point.

Material Compatibility:Solvent-based coatings:Use models FRL10Y/30Y

Waterborne & high-solids coatings:Specify FRL10S/30S


Low Pressure Back Pressure Valve is Mechanically operated in air spray systems to limit supply pressure to a preset value by opening the outlet and diverting excess material upon reaching predetermined pressure. Designed for use in circulating systems.

Key Features:Downstream pressure regulation with low-shear, straight-through flow path.Reduced clogging risk through optimized passage design.Universal material compatibility: Suitable for solvent-based, waterborne, and high-solids coatings.


Description

Features

• Compact, integrated design with simplified installation.

• 316 stainless steel construction for corrosion resistance and durability.

• Precision mechanical pressure adjustment with anti-loss handle.

• Low shear, full-bore flow channel for minimal turbulence.

• Optional hose connector and multi-angle flexible installation interface.

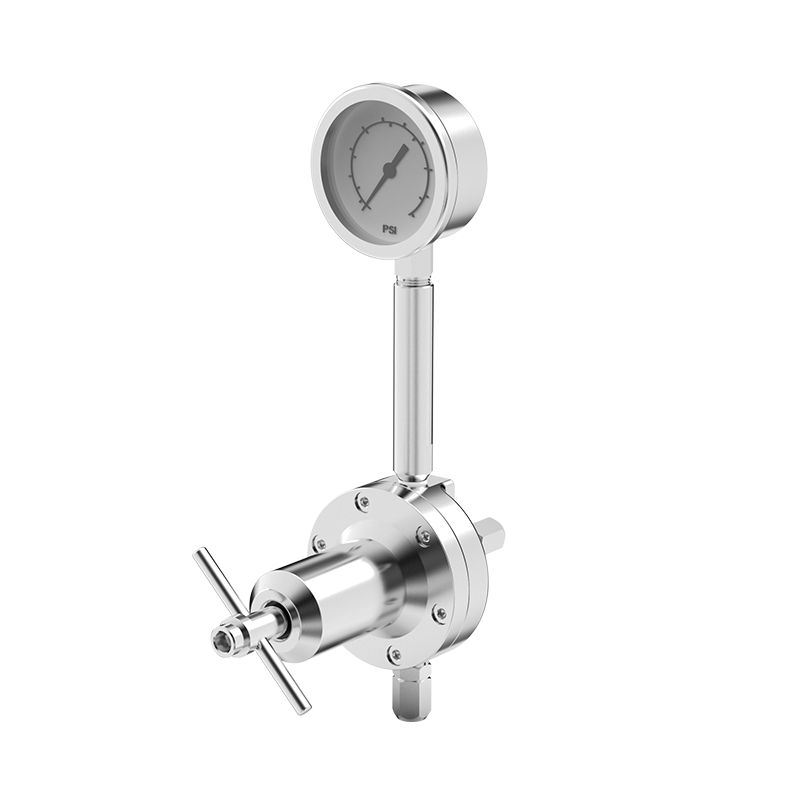

Low Pressure Regulator

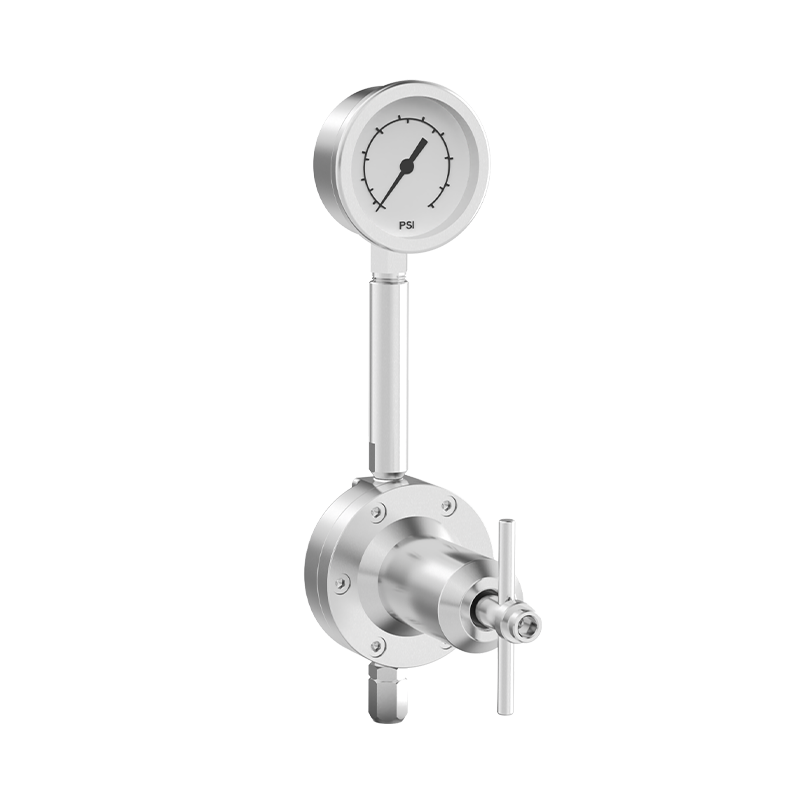

 Low Pressure Back Pressure Valve

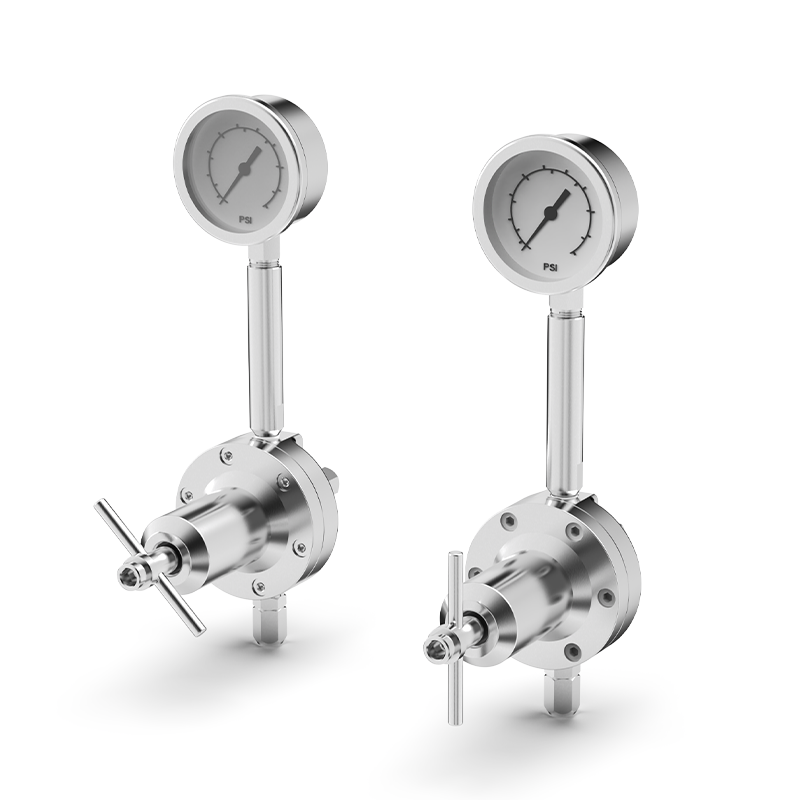

Solvent based Water based
Advantages

The stainless steel pressure regulator is used in air spray circulation systems to reduce mainline pressure and maintain stable fluid output to the spray gun or atomizer. Solvent-based coatings typically use models FRL10Y/30Y, while water-based and high-solid coatings use FRL10S/30S. The back pressure valve (BRL1/BRL2) maintains upstream pressure and stabilizes flow to reduce pulsation in high-precision applications.


Applications

• Auto Parts

• Furniture & Wood Finishing

• Sanitary Ceramics & Bathroom Products

•3C

•General Industrial: Hardware, Plastics, and More


TECHNICAL DATA TABLE

Back Pressure Valve

Designation

Value

Order Code

BRL1: 13053C000037 / BRL2: 13053C000010

Max Fluid Pressure

100 psi (7 bar / 0.7 MPa), 300 psi (21 bar / 2.1 MPa)

Max Flow Rate

1.5 GPM (5.5 L/min @ 100 psi), 3 GPM (11 L/min @ 200 psi)

Regulating Range

5–100 psi (0.3–7 bar / 0.03–0.7 MPa), 5–300 psi (0.3–21 bar / 0.03–2.1 MPa)

Wetted Parts

316 Stainless Steel, PTFE, FFKM

Fluid Inlet

6 × 8 mm hose connector (optional)

Fluid Outlet

1/4" PT (F)

Weight

1.36 kg


Pressure Regulator

Designation Value
Order  Code 13053C000002 13053C000006 13053C000040 13053C000039
[Water based FRL10S] [Water based FRL30S] [Oil FRL10Y] [Oil FRL30Y]
Max Fluid Pressure 100psi（7bar，0.7MPa） 300psi（21bar，2.1MPa） 100psi（7bar，0.7MPa） 300psi（21bar，2.1MPa）
Max Flow Rate 1.5GPM (5.5 liters/minute) 3GPM (11 liters/minute) 1.5GPM (5.5 liters/minute) 3GPM (11 liters/minute)
@70cps viscosity, 100psi @70cps viscosity, 200psi @70cps viscosity, 100psi @70cps viscosity, 200psi
Regulating Range 5 – 100psi（0.3 – 7bar， 5 – 300psi（0.3 – 21bar， 5 – 100psi（0.3 – 7bar， 5 – 300psi（0.3 – 21bar，
0.03 – 0.7MPa） 0.03 – 2.1MPa） 0.03 – 0.7MPa） 0.03 – 2.1MPa）
Wetted Parts 316 stainless steel 、PTFE、FFKM
Fluid Inlet 3/8 "PT (f) live connection
Fluid Outlet 6 * 8mm hose connector (optional)
Weight 1.36kg
